Old Majestic Fire Pit
Design Project for Old Majestic Brewing Company in Mobile, AL
5-month collaborative studio project
Project Overview
The outdoor fire pit project was a collaborative effort between representatives from Old Majestic Brewing Co. in Mobile, Alabama and the Auburn University Mobile Futures Studio. Our goal was to develop an inviting ambiance for their customers by designing an outdoor fire pit that adheres to the existing aesthetic of Old Majestic Brewery.
Constraints
ledge for food and drinks
provide warmth & ambiance
theft proof
natural gas line hook-up
On-Site Research
existing outdoor furniture: familiar, handmade
.jpeg)
client chosen location of fire pit
simple, geometric truss work
classic, simple windows to view brewing equipment
Exploratory Sketching
Our class was assigned exploratory sketches to present to Old Majestic. The image highlighted in blue signifies noteworthy elements but technical issues; yellow images signify interest but needed refinement; green images signify chosen designs to pursue.
the client selected my concept along with another student's
*some sketches done by other students
Idea Development

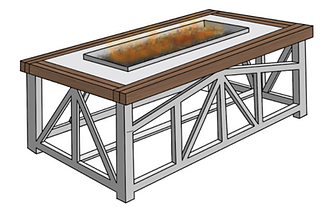

design by Abby Freeman
overall rectangular dimensions taken from Abby's design

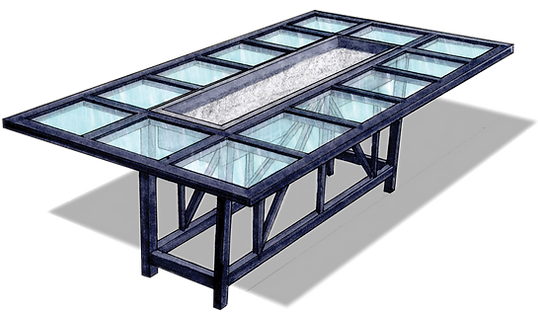

plexiglass paneling taken from my design
heavy steel base to discourage theft
ample ledge space for food & drinks
combined truss style base
Concept Refinement
client concerns about plexiglass paneling maintenance
replaced plexiglass with wood, but kept paneling
client request: increase overall tabletop dimensions
simplified frame for easier cleaning
steel truss framework
truss pattern for base
Final Fabrication
truss inspired base
36" burner for more warmth with natural gas hook up
client request: trim corners for safety
6' x 6' tabletop
mahogany wood panels

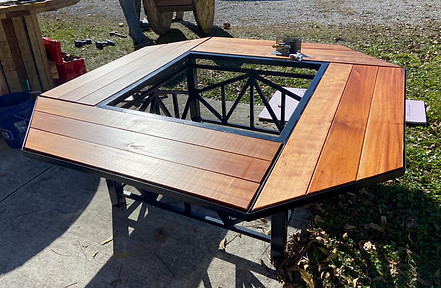

Finished Product
CLIENT SATISFACTION
“We’re incredibly happy with the fire pit. The level of craftmanship and quality is better than anything we could have hoped for. We’re already seeing customers drawn to the fire pit which is exactly why we wanted one installed--to create an inviting atmosphere.”
